Startseite /Produkte/Kleiner Maschinentyp/HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting

HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting

1 Set
MOQ
To Be Negotiable
Preis
HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warenzeichen: Xianda
Herkunft: Fujian, China
Zustand: Neu
Anwendung: Steinausschnitt
Garantie: 1 Jahr für Teile
Bruttogewicht: 1500 kg
Klingenmaterial: Diamant, Stahl, Eisen
Nennleistung: 7,5 kW
Hervorheben:

Ø600 mm blade Hand Stone Cutting Machine

,

700 mm lift Diamond Wire Saw Machine

,

7.5 kW motor Manual Stone Cutter
Grundinformation
Herkunftsort: Jinjiang, Fujian, China
Markenname: Xianda Machinery
Zertifizierung: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Modellnummer: HCM - 600
Zahlung und Versand AGB
Verpackung Informationen: Drahtseilzurrung, geeignet für den See-/Luft-/Land-/Zugtransport.
Lieferzeit: 15 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 1000 Sätze/Jahr
Produkt-Beschreibung
HCM-600 Hand Stone Cutting Machine
Since 1985 — Fully Enclosed, Dust-Proof Manual Cutter for Tombstones, Paving & Shaped Stone
Machine Overview

The HCM-600 is a hand-pull stone cutter built for small-batch, high-accuracy cutting of tombstones, paving slabs, and shaped stone.

A Ø600 mm blade, 700 mm lift, and fully enclosed dust-proof body give you clean, chip-free edges with minimal maintenance — ideal for workshops, monument yards, and DIY stone yards.

Why Choose HCM-600?
Benefit Feature
Chip-free edges Ø600 mm diamond blade + wet cooling
Dust-proof Fully-enclosed body—no grit in bearings
Low maintenance Open-frame access—belts & guides in 5 min
700 mm lift Cuts 650 mm thick stone in one pass
2 m³/h water Closed-loop tank; workshop stays clean
Technical Specifications
Parameter HCM-600
Blade diameter Ø600 mm
Main motor 7.5 kW, 3-phase, 380 V
Lifting stroke 700 mm
Table size 1 200 * 800 mm (standard)
Dimensions 2 200 * 2 700 * 2 850 mm
Weight 1 500 kg
Water consumption 2 m³/h (recycled)
Ideal Applications
  • Tombstone blanks — straight or shaped top cuts
  • Paving stones — 100-600 mm flags, random lengths
  • Garden edging — curved or angled borders
  • Countertop off-cuts — sink cut-outs, small mitres
  • Monument lettering base — flat, square reference faces

Materials: granite, marble, basalt, limestone, engineered stone.

Pricing, MOQ & Shipping
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 7 days stock / 15 days custom
Payment T/T 30% deposit, 70% before shipment; L/C at sight accepted
Frequently Asked Questions
What maintenance is needed?

Daily water check, weekly belt tension, monthly bearing grease.

Can I cut engineered stone?

Yes—use the continuous-rim blade supplied.

Is installation included?

Video guide and remote support are standard; on-site installation is optional.

How long to receive spare blades?

24 h from regional warehouse; 5-day express worldwide.

Payback period?

Typically 3-4 months for monument yard cutting 50 slabs/week.

Manufacturing Process

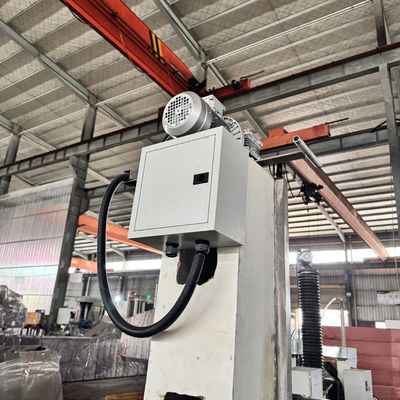

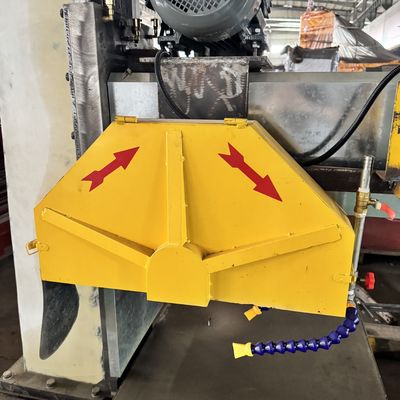

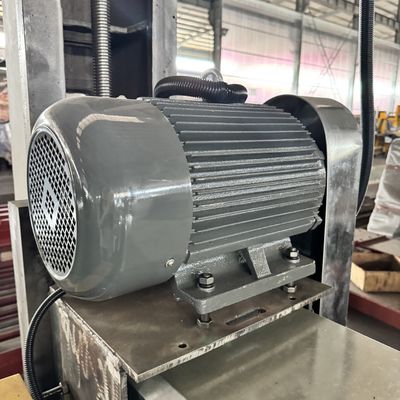

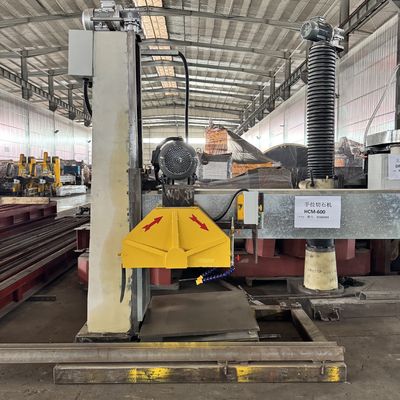

HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting 0 HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting 1 HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting 2 HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting 3 HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting 4 HCM-600 Hand Stone Cutting Machine with Ø600 mm Blade 700 mm Lift and 7.5 kW Motor for Precision Stone Cutting 5
